Hog Heaven Electrically Conductive Mat

Product Number 4507, 4509, 4511, 4513
Hog Heaven Electrically Conductive anti-fatigue mats are designed for use in electrically sensitive environments.
  • Electrically Conductive - Nitrile rubber surface is electrically conductive to quickly drain static electricity to help protect sensitive equipment from damage
  • Comfortable - High-density nitrile-blended cushion helps eliminate pressure to the lower back and legs, providing superior comfort
  • Safe - Certified high-traction by the National Floor Safety Institute (NFSI); sloped edges provide a safe transition from floor to mat
  • Durable - Nitrile-blended cushion provides years of useful service life; cushion is molded, not glued, to the nitrile rubber surface so it will not separate; edges will not crack or curl
  • Versatile - Welding safe; ESD rating of electrically conductive; chemical resistant; surface is grease/oil proof and cushion is grease/oil resistant

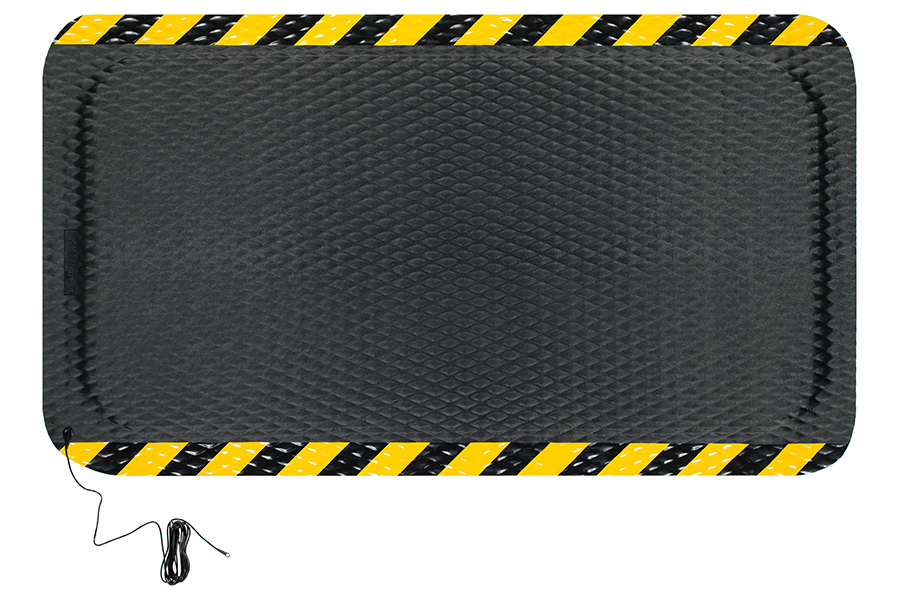

  • Available in 5/8" or 7/8" thicknesses with solid black or with OSHA-approved caution yellow borders on two sides

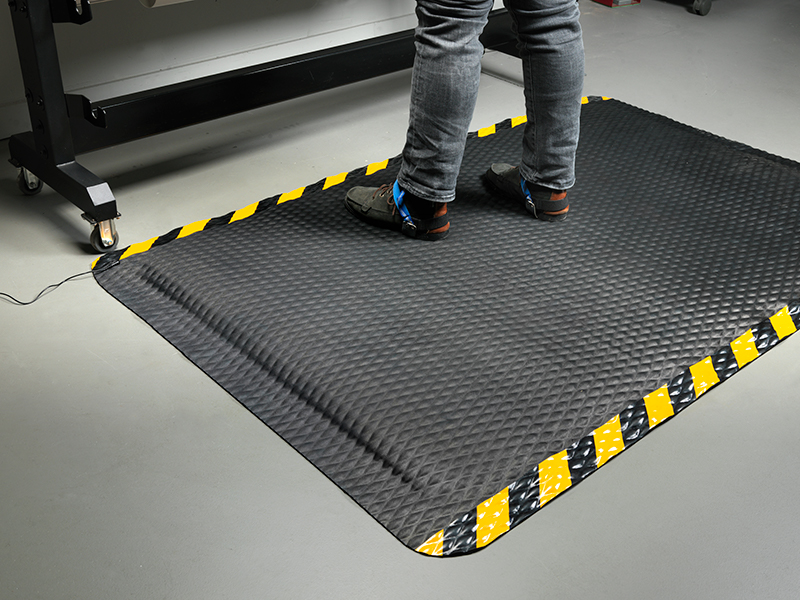

  • Includes ground wire and snap

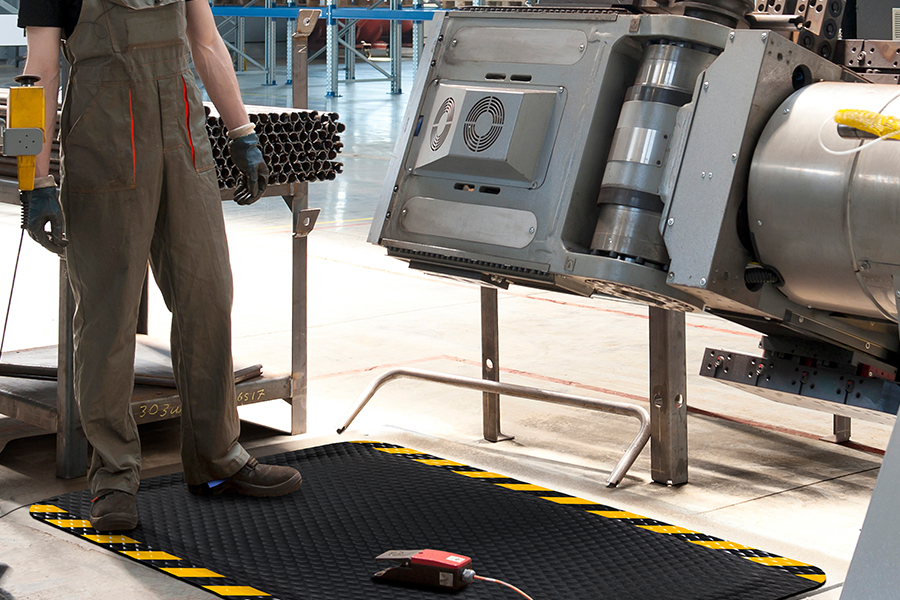

Recommended for indoor use in static-sensitive environments where an electrically conductive mat is necessary to protect sensitive equipment or products.

2' x 3' (23" x 32")
3' x 5' (32" x 58")
4' x 6' (46" x 69")

Please note, mat sizes are approximate as rubber shrinks and expands in conjunction with temperature and time. Tolerable manufacturing size variance is 3-5%.

SURFACE
Material: Nitrile rubber

CUSHION
Material: High-density, closed-cell nitrile/PVC-blended foam

Overall Mat Thickness: 5/8 inch (0.6250" ) or 7/8 inch (0.8750") depending on the product selected

STANDARDS & TESTING

  • Durometer: 56
  • Compression Deflection:
         5/8" Mat: 47.8% at 20 psi; 61.6.0% at 40 psi
         7/8" Mat: 51.0% at 20 psi; 66.0% at 40 psi
  • Certified high-traction by the National Floor Safety Institute (NFSI)
  • Passes flammability standard DOC-FF1-70
  • ASTM C1028-96 static coefficient of friction:
         Dry 0.87
         Wet 0.85
  • 5/8" Mat ESD rating of electrically conductive:

             Surface to surface at 50% relative humidity 3.0 x 10^5 ohms

             Surface to surface at 12% relative humidity 3.5 x 10^5 ohms

  • 7/8" Mat ESD rating of electrically conductive:                                                                                                                        Surface to surface at 50% relative humidity 3.3 x 10^5 ohms
     Surface to surface at 12% relative humidity 3.8 x 10^5 ohms
  • Meets requirements for ASTM/ESD S20.20 and ASTM/ESD S7.1
  • Melt point over 500 degrees F. Tested at temperatures up to 1800 degrees F for welding/slag resistance (specific results from test available upon request)

Hog Heaven Electrically Conductive mats can be cleaned using the instructions below:

  • Scrub with a deck brush (as needed) using a detergent with a neutral pH
  • Rinse with a hose or pressure washer
  • Hang to dry

Mats should always be dry before they are placed back in service.
